DIY Cat Litter Box

This post has been compensated by Collective Bias, INC®, and its advertiser however all images and opinions are my own. #LovetheseCleanPaws #CollectiveBias

If you’ve been around these parts for a while you’ve already met Tobi.
He is my little 13 year old furball who is simultaneously the joy in my heart and a pain in my butt, yet I wouldn’t have it any other way. With all the moves in the last year (4!) finding a space for Tobi’s litter box has been a challenge. Since Charleston his litterbox has ended up in the living room/den of every house and let’s be honest; you don’t want to have guests over while your cat takes a poop next to the couch and smelling that less than delightful aroma.

A while back I mentioned to Eddie that I wanted to get something that was covered that we could put his box in and help hide the litter box, block the smell, and catch the litter. After looking at a bunch of options we found one that we both liked (inspiration) but Eddie decided to build it himself and I’m here today to share with you the plans and my extra tips to keep everything smelling fresh and clean.

I’ve also got to admit that this litter box wasn’t the only solution to making a re-fresh with Tobi’s litter situation. I was walking through target and grabbed some of the Fresh Step Clean Paws™ Triple Action Scented Litter to try out and I’ve got to say, I’m not disappointed. Having a cat is such a blast but the litter situation always makes me a little queasy – I mean dirty paws walking all around your house is a smidge gross so having Fresh Step Clean Paws™ helps to keep Tobi’s paws and my house clean! It also is a low dust formula (a must!) and helps to lessen litter tracking all over the house as well as blocking odor in three magical ways: blocks urine odors, eliminates fecal odors, and stops odors from bacteria. (ALL THE PRAISE HANDS!).

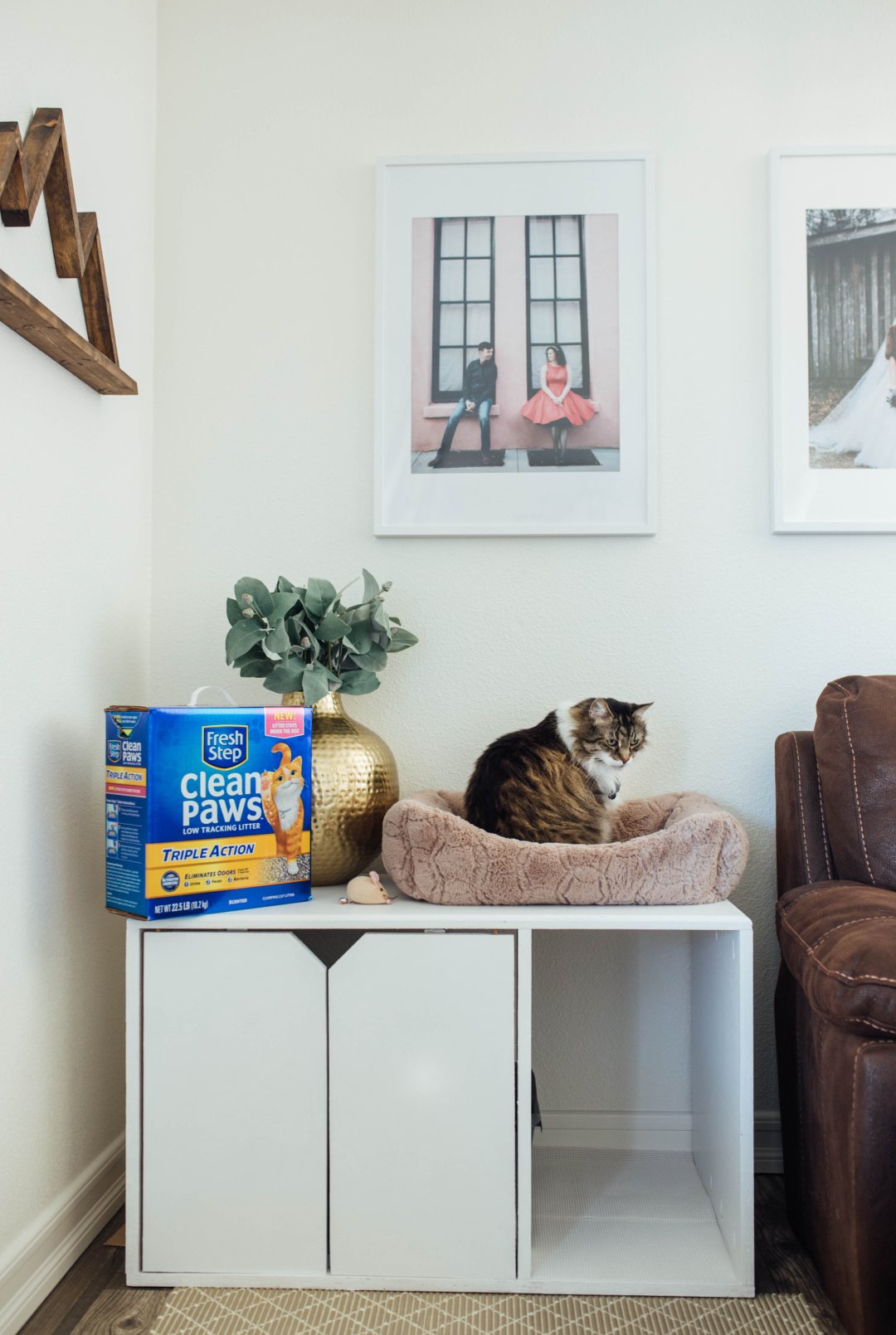

DIY Cat Litter Box

+ 1 sheet 3/4 inch maple plywood
+ 1/2 sheet 1/4″ Maple plywood
+ 5/16″ oak dowel
+ Pocket hole Kreg jig
+ 1 1/4 inch pocket hope screws
+ ‎2 magnetic door latches
+ Gripped contact paper

How to:
1. Measure and cut the top and bottom pieces at 36″ x 20.5″
2. Measure and cut both sides at 20″ x 20.5″
3. Measure and cut the divider at 20″ x 8″
4. ‎Equally space and drill four 3/4″ pocket holes on the bottom and top of the sides and two 3/4″ pocket holes on the top and bottom of the divider
5. ‎Attach the sides using 1 1/4″ pocket hole screws to the bottom piece
6. ‎Attach the divider at a length appropriate for the size of your litter box and cat (we attached to allow 22″ between the side and divider)
7. ‎Dry fit the top and measure for your doors. Allow a gap for the doors such as 1/4″ gap on the sides (our doors ended up being 10 5/8″ x 19 3/4″)
8. ‎Drill 1/2″ deep holes in the bottom and top pieces and top and bottom of doors to insert dowels for placing the doors (the idea is to fit like IKEA furniture)
9. ‎Attach the doors followed by aligning and attaching the top using 1 1/4″ pocket hole screws
10. ‎Attach the magnet latches to the bottom of the top piece and the top of each door
11. Add a back piece of wood/pdf if you would like (we plan to!)
12. ‎Use veneer edging to cover the plywood edges or use a router to edge the top piece
13. ‎Paint or stain as needed

Psssttt…make sure you check out the Target Cartwheel Offer on the Fresh Step Litter running from 4/1-4/7!!!
